CAD TANGENTIAL ON-PIPE VALVES


CAD TANGENTIAL ON-PIPE VALVES

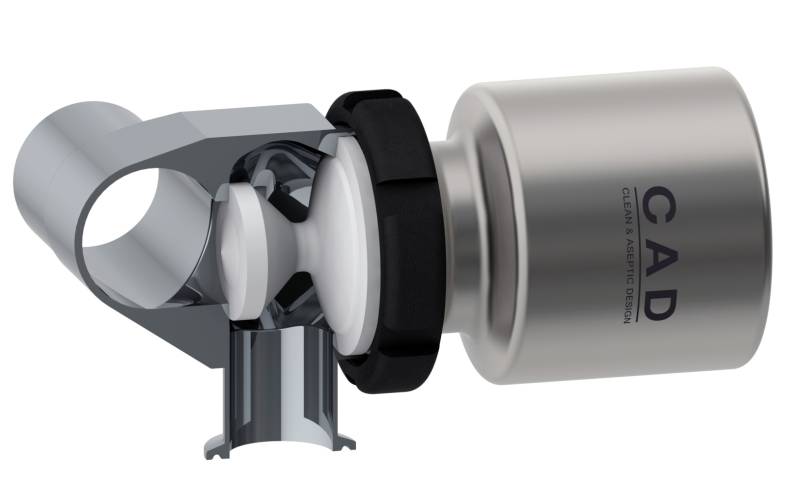

CAD Tangential On-Pipe Valves are the answer where full drainability of the main pipeline is required with horizontal assembly of the valve. In this design the valve inlet, which is always close to the valve closure point, is tangential to the lowest part of the pipe, allowing complete draining of the main pipe. For easier connection and space saving, the valve outlet is vertical, obviating the need for an additional elbow at the outlet as in the case of typical competitor valves.

004

Compact design

Short distance between the inlet and the sealing area

Internal design free from asymptotic closure
