CAD FLOW-THROUGH VALVES


CAD FLOW-THROUGH VALVES

The Flow-Through design allows the flowing medium to circulate through the valve body behind the valve seat.
There is always flow in this area, avoiding stagnant product inside the valve body.
Thanks to the flush flow design of Flow-Through valves, the Dead-Leg between the closure area and the manifold main pipeline is a true ZERO Dead-Leg, not 3xD or 1,5xD. Flow-Through valves are supplied with 90-degree and 180-degree options to enable compact assemblies.

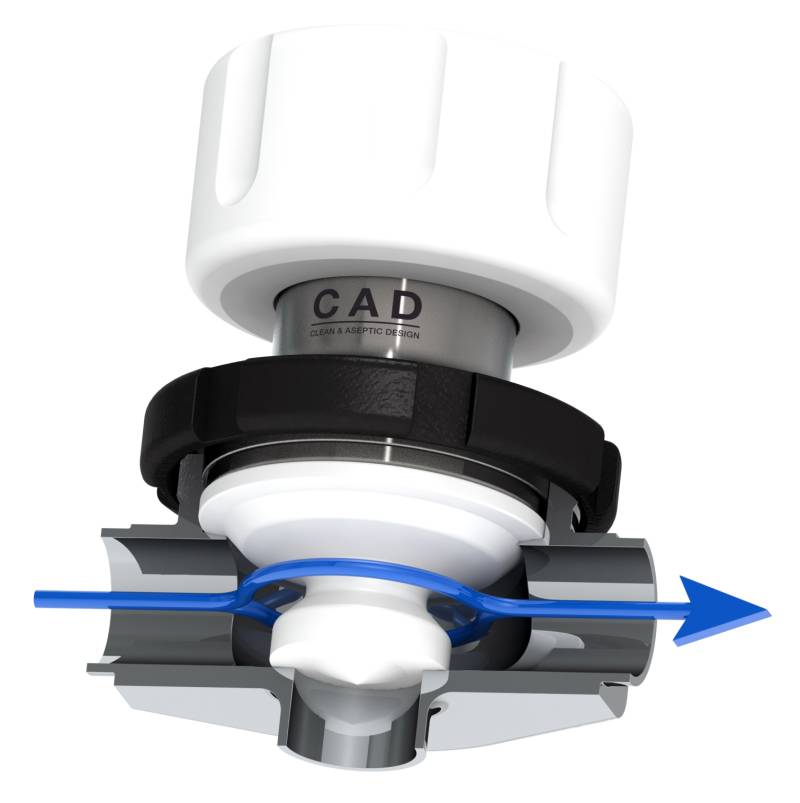

002

Short distance between the inlet and the sealing area

Flush flow design

Internal design free from asymptotic closure
