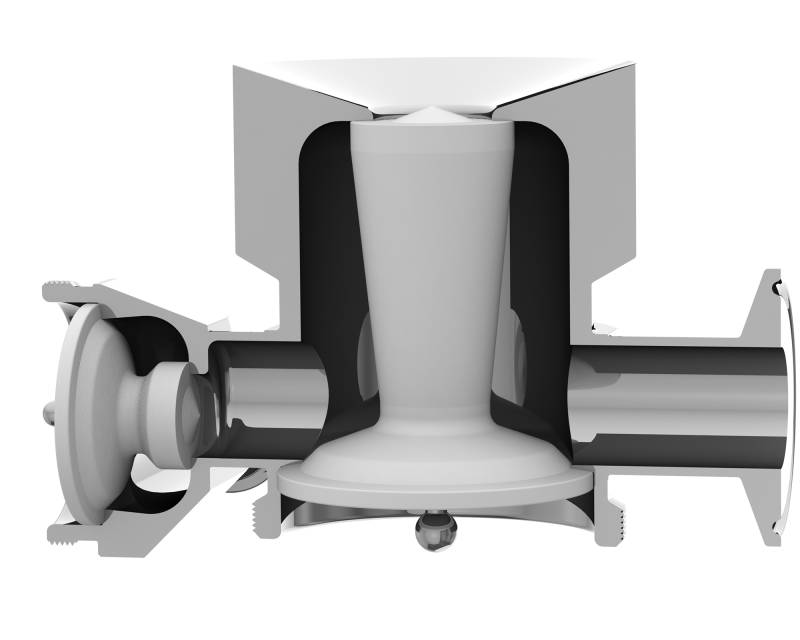

CAD EXTENDED BTV + SATELLITE

Vessel jacket and insulation can be welded directly to the valve body of CAD Extended Bottom Tank Valves, avoiding an area with uncontrolled temperature at the bottom of the vessel.
Thanks to the extended design, the satellite valve can be the same size as the main valve, speeding up down-stream CIP cycles.

Tangential connection, elbow not needed

Reduced ratio in compared to the entrance of the satellite valve

Valve inlet open to the turbulence of mixing unit

Extended
welding area
for jacket

Straight
outlet design,
elbow not needed
