CAD DIVERTING VALVES + SATELLITE


CAD DIVERTING VALVES + SATELLITE

CAD Diverting valves are the optimum solution when the flow path needs to be managed in different directions.
The distance between the two closure areas is equal to the internal diameter of the common inlet pipe, achieving an extremely compact design, free of tee pieces or junctions.
Unlimited solutions can be provided, just adding connections or satellite valves, achieving multifunctions valves in an extremely compact design.

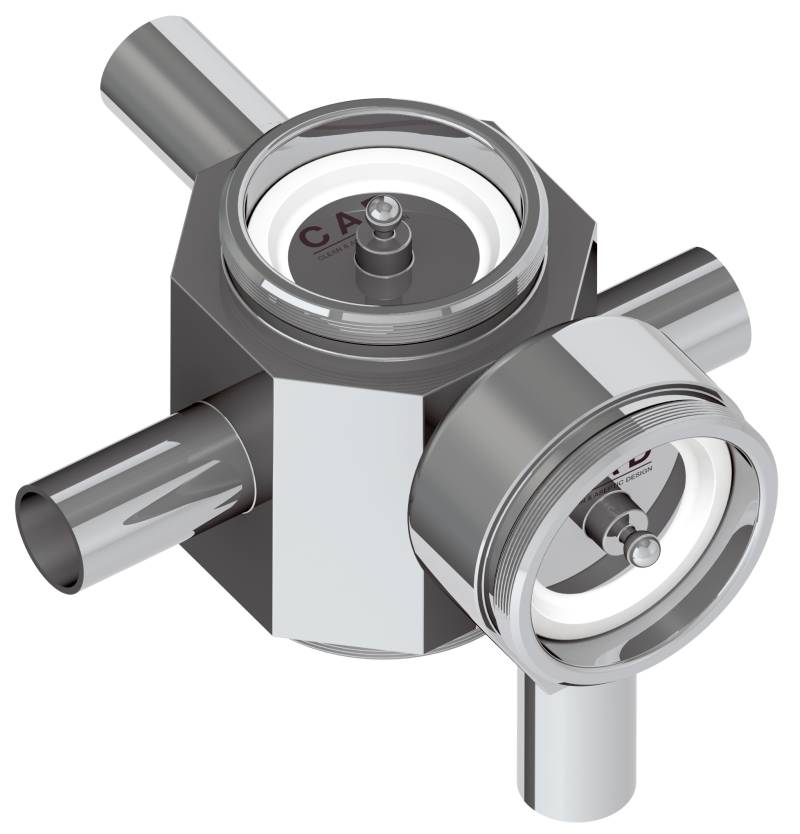

014

CAD Diverting Valve

Satellite Valve

Additional
connection for
satellite valve
