CAD DIVERTING VALVES


CAD DIVERTING VALVES

CAD Diverting valves are the optimum solution when the flow path needs to be managed in different directions.

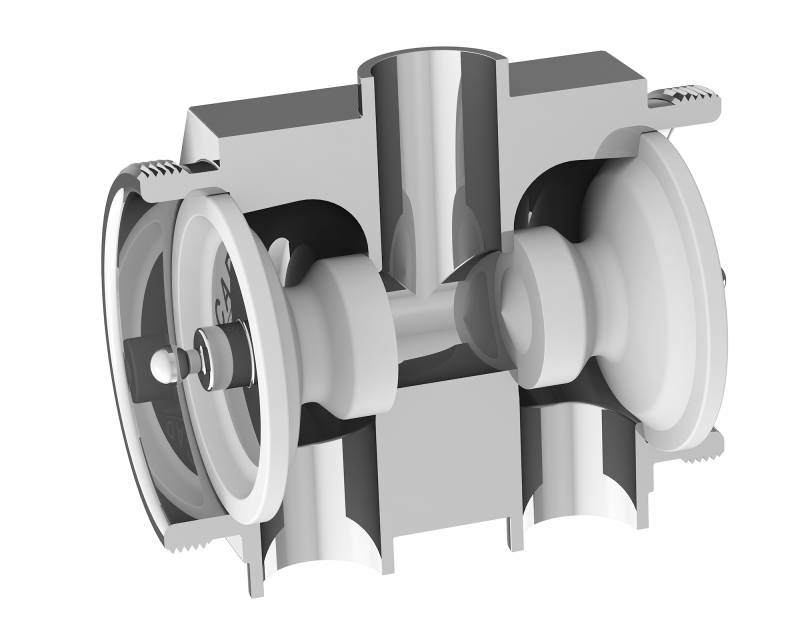

The distance between the two closure areas is equal to the internal diameter of the common inlet pipe, achieving an extremely compact design, free of tee pieces or junctions.
Eight different porting combinations are available in the catalogue as standard but additional customized designs can be manufactured according to the demands of the process.

17

Internal design free from asymptotic closure

Minimized distance between diaphragms

Internal design free from asymptotic closure
