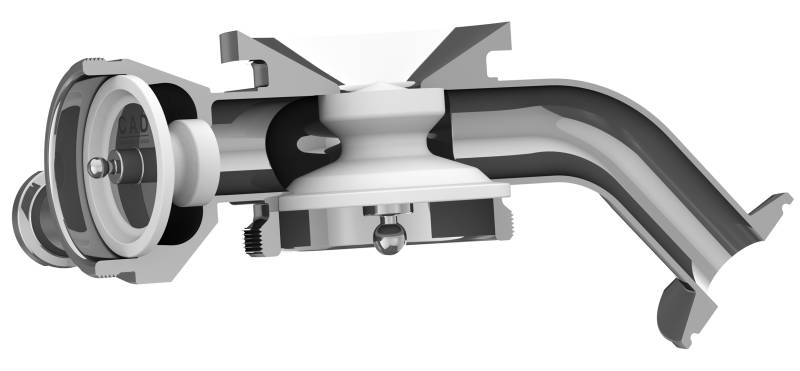

CAD BTV + SATELLITE

CAD Valves used in satellite applications are typically eccentric or eccentric as well as tangential.
Eccentric valves reduce the ratio compared to the entrance of the satellite valve on the tank bottom valve, reducing the dead-leg and permit the use of larger satellite valves.

Valve inlet open to the turbulence of mixing unit

Tangential connection, elbow not needed

Reduced ratio in compared to the entrance of the satellite valve

Internal design
free from
asymptotic closure
