CAD BOTTOM-POINT ASSEMBLY


CAD BOTTOM-POINT ASSEMBLY

CAD Bottom Point Assemblies are complete units to manage CIP and SIP condensate drainage in an extremely compact assembly to reduce space requirements under your vessel.
Two different designs are available according to the requested steam trap – both of which include a TC mounting point for a PT100 sensor to ensure minimum temperature maintained during SIP hold-time.
Both systems have all the required Tri-Clamp connections and can be connected in a few minutes, saving hours of on-site work and speeding the installation completion.

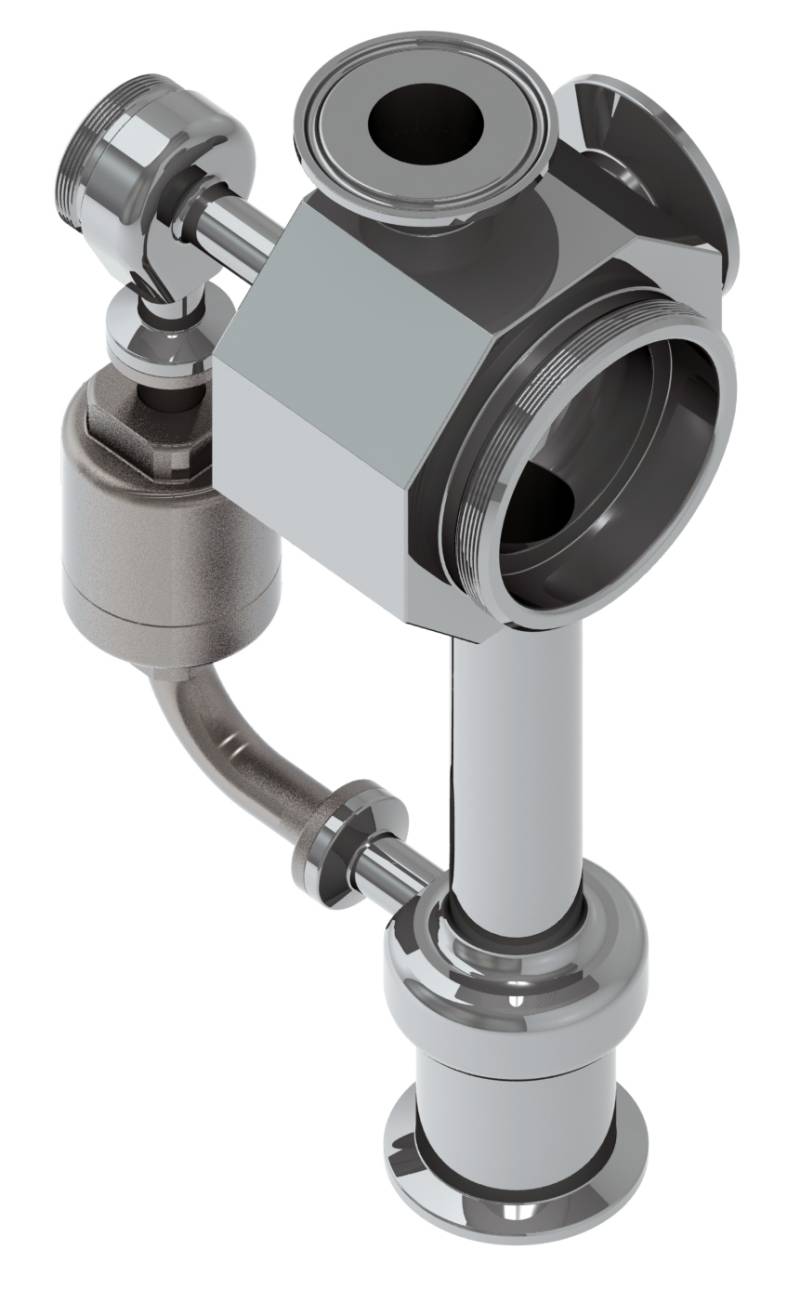

010A

Smaller valve for condensate drain (SIP)

Reversible
connections

Reversible
connections

Larger valve
for CIP drain

Waste collector connection
